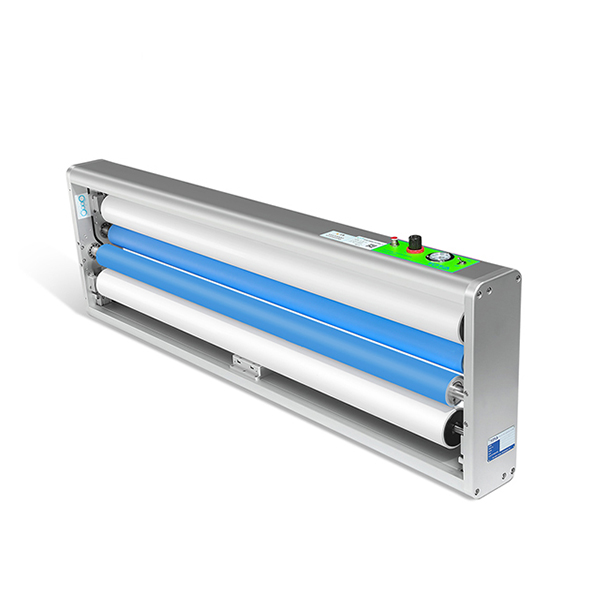

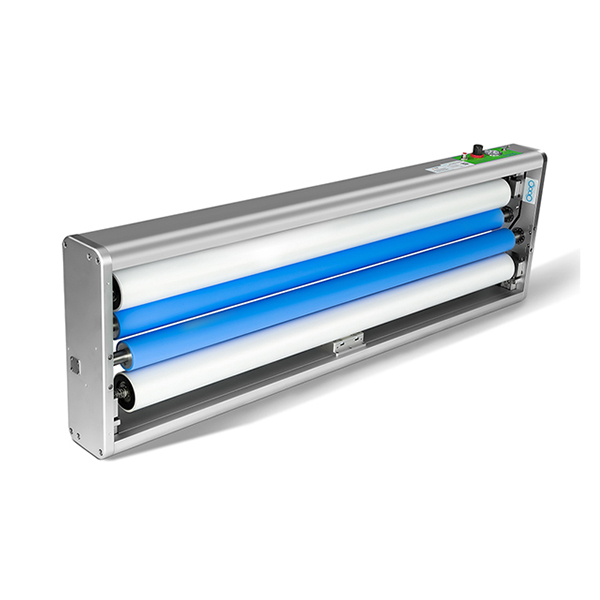

LH-3500 Dust Removal Device

LH-3500 Sticky Roller Cleaning Machine
Sticky Roller Cleaning Machine

Product Features

● Sticky Roller Cleaning Machine can be accurately synchronized with the main equipment to ensure that the material is not stretched or scratched, and it is suitable for various thickness materials.

● Sticky Roller Cleaning Machine whole machine is small in size and easy to install.

● Effective dust removal size 800mm to 1700mm (different length specifications can be customized).

● 2 dust removal rubber roller.

● 2 dust collecting roller.

● Optional installation of servo motor synchronization system.

● Optional installation of anti-static equipment.


Product Application

LH-3500 Sticky Roller Cleaning Machine is an efficient material surface dust removal equipment. It is mainly aimed at cleaning the surface of the material before coating, printing, laminating and rewinding. It can quickly and efficiently remove fine dust on the surface of the material and improve product quality and yield.




标签:

Specifications

Product Name                         Sticky Roller Cleaning Machine

Model                                       LH-3500

Size                                            (L+170)mm*150mm*545mm

Dust Removal Roller                 2 pieces

Sticky Paper                              2 pieces

Effective Coverage                 600-1700mm

Material Thickness                    0.005mm or more

Speed                                        100m/min

Synchronous Connection        Synchronize with the main device

Anti-static Equipment              1 static elimination host, 2 static bar above the material outlet
